Dynamical Simulations of Tetragonal-Orthorhombic Ferroelastics

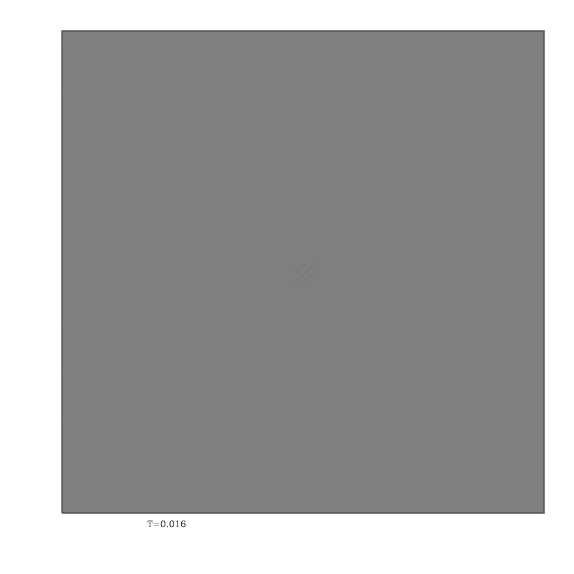

A nucleus of the orthorhombic phase in a hard T-O system is characterised by its X-shape. This image evolves according to A1=A3=1000, A2=-50 and A1'=0 (see below)

Some simulations of "soft" systems using A1=A3=10 and A1'=1

A "hard" system, A1=A3=500

High resolution versions of the figures for cond-mat/0012312: Fig1.ps.gz (9.7Mb), Fig2.ps.gz (10.4Mb), Fig3.ps.gz (10.3Mb), Fig4.ps.gz (1.1Mb).
