Lipids dispersed in water form bilayers which are useful models for biological membranes and for materials with internal conformational freedom. We study how bilayer properties like phase behavior, dynamics, and bilayer organization respond to interactions with membrane-associated proteins or changes in bilayer composition or pressure. For bilayers with deuterated components, wideline deuterium NMR observations reflect the extent to which the orientation-dependent quadrupole interaction is modulated by molecular motions. The bilayer state can then be characterized by the amplitudes and timescales for motions ranging from reorientation of molecular segments to bilayer collective motions. Phenomena studied may be relevant to biological function or to the material properties of membrane-mimetic soft materials. Insights or questions arising from a biological or material focus can motivate or inform the other aspect. Specific topics of interest include:

Interactions relevant to organization and transformation in lung surfactant material

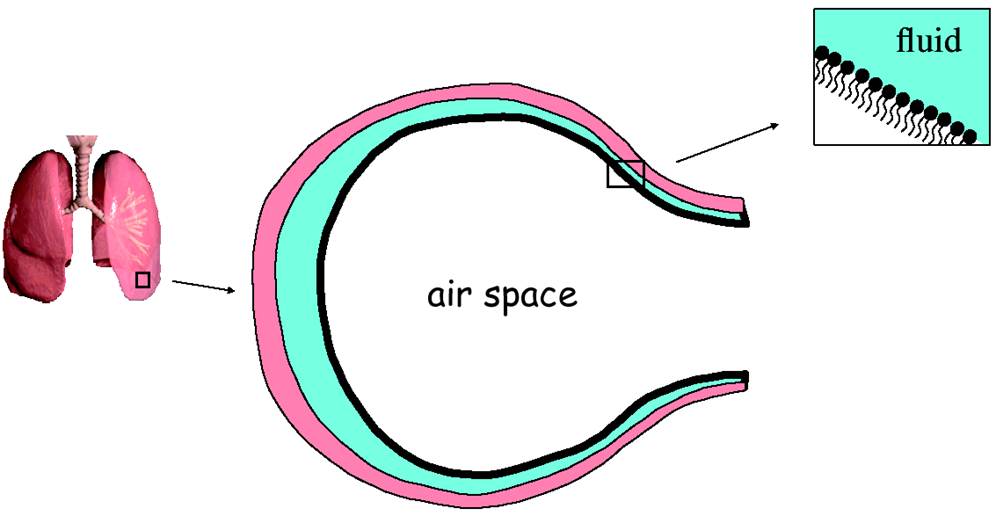

Structural reorganization of bilayer material is biologically important and relevant to understanding the material properties of lipid aggregates. Lung inflation depends on a lipid layer that reduces surface tension at the air-water interface. Maintaining this surfactant layer requires spontaneous redistribution of lamellar precursor material as lung volume cycles.

Phase transitions, dynamics, and reorganization in bicellar lipid mixtures

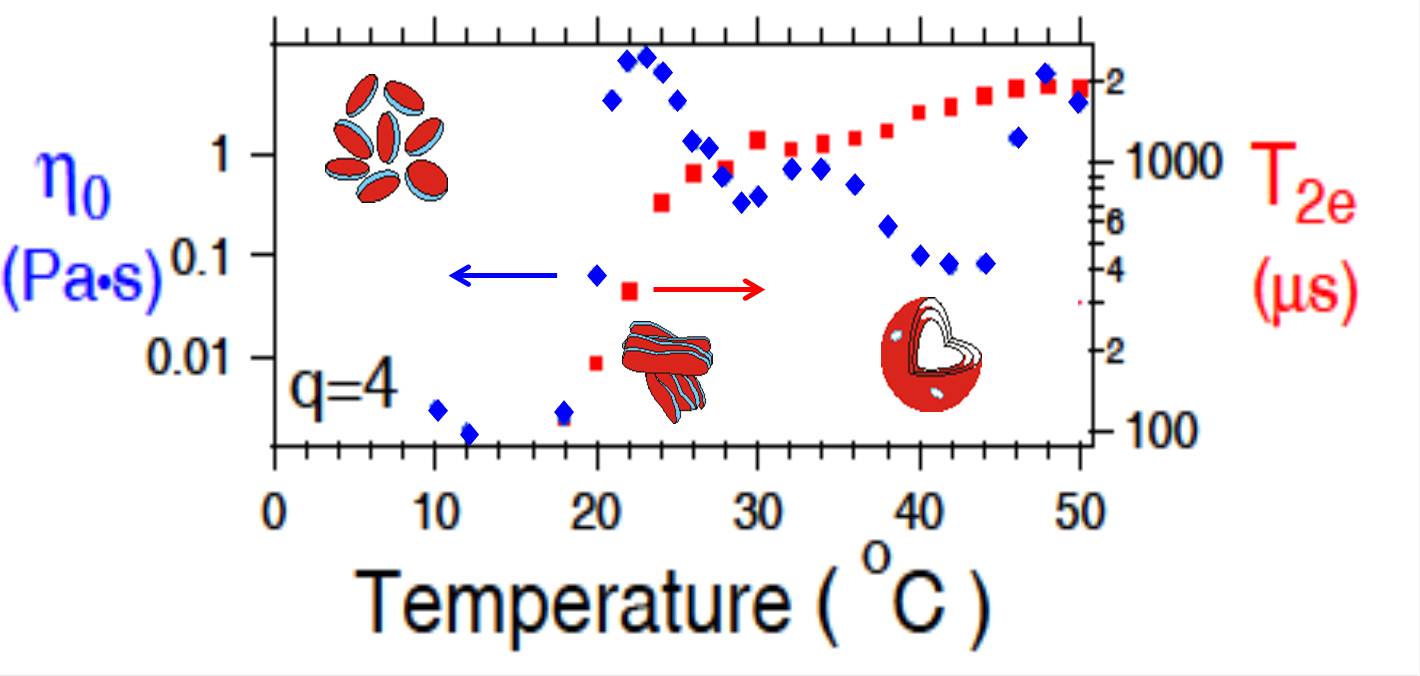

Interest in mixtures of long and short chain lipids (bicellar mixtures) first arose because of their potential to form magnetically-orentiable phases that facilitate NMR studies of membrane proteins. The short chain lipids tend to separate into highly curved regions at the edge of disks, worm-like micelles, or pores. We are interested in such materials as models of lipid phases with highly curved edges and transitions that involve substantial reorganization and changes in aggregation. Insights into transitions that change the aggregation state of lipidic particles may be relevant to liposomal assembly and are being pursued further. We have used multiple pulse NMR observations to show that the slow motions in the high temperature lamellar phase of bicellar materials are significantly different from those in multilamellar dispersions of bilayers with more homogeneous chain-length distributions.

Lipid assembly responses to high pressure

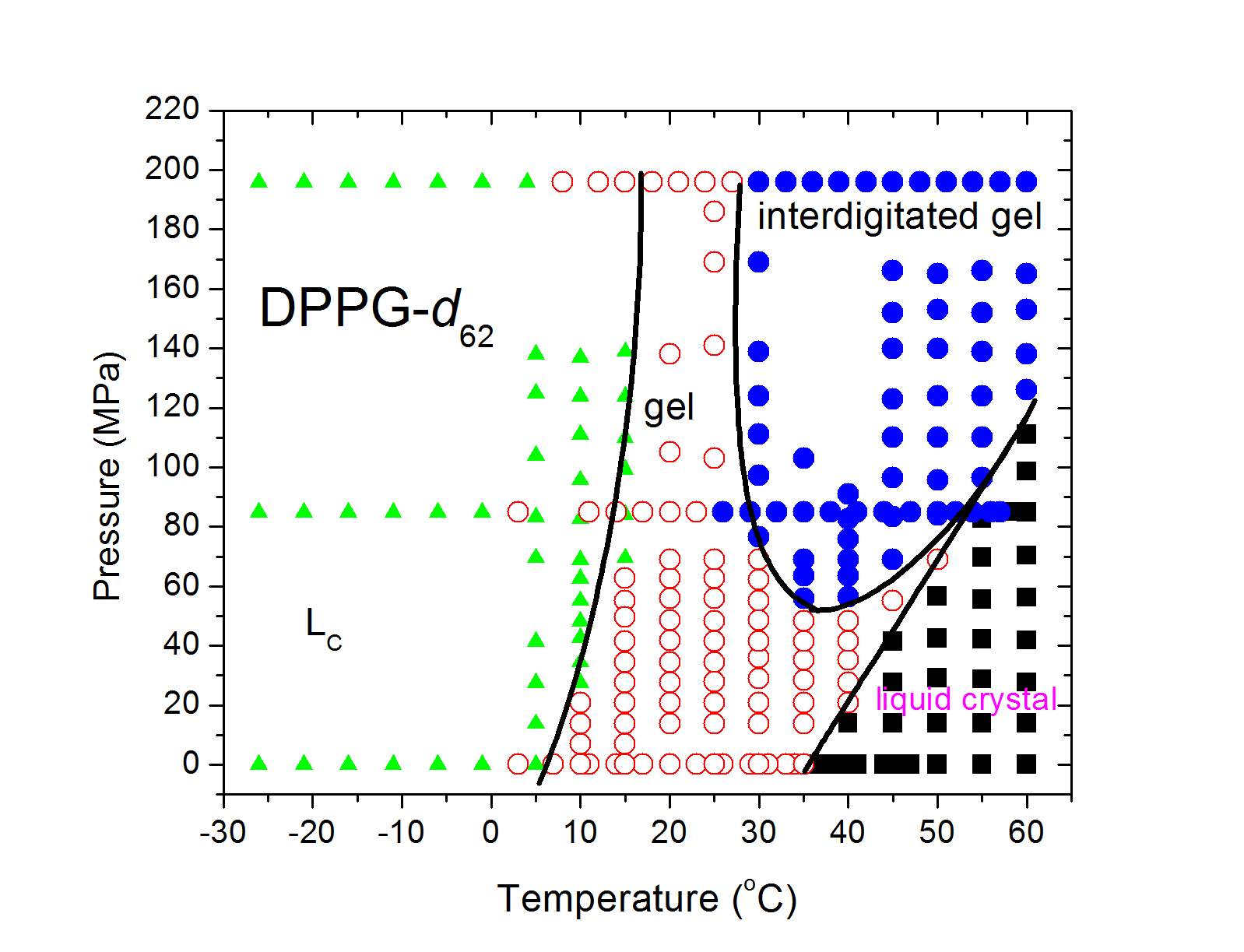

Studies of how soft materials respond to pressure, an important thermodynamic variable, have been limited by technical considerations. This is one of a few labs, worldwide, with the capacity for solid-state NMR studies of soft materials at high pressure. Lipid bilayers are anisotropic. Their responses to hydrostatic pressure reflect competition between lateral compression (increased chain order/extension) and longitudinal compression (bilayer thinning). This competition can result in transitions, at high pressure, to phases, such as the interdigitated gel phase in which lipid chains extend past the bilayer mid-plane, that are not seen at ambient pressure. This can provide new insights into bilayer material properties. For example, DPPC and DPPG, which differ primarily in headgroup charge, behave similarly at ambient pressure but not at high pressure. We have found that DPPG (negative headgroup) interdigitates at lower pressure than DPPC (zwitterionic) suggesting that repulsion shifts the balance between lateral and longitudinal compression. Variable pressure may facilitate the study of bilayer reorganization processes having interdigitated phases as possible intermediate states. We have also found evidence that increased chain unsaturation reduces sensitivity of bilayer order to pressure and extends earlier work by this group on ambient-pressure phase behaviour of unsaturated lipid bilayers.

Orientation and dynamics of membrane-associated polypeptides

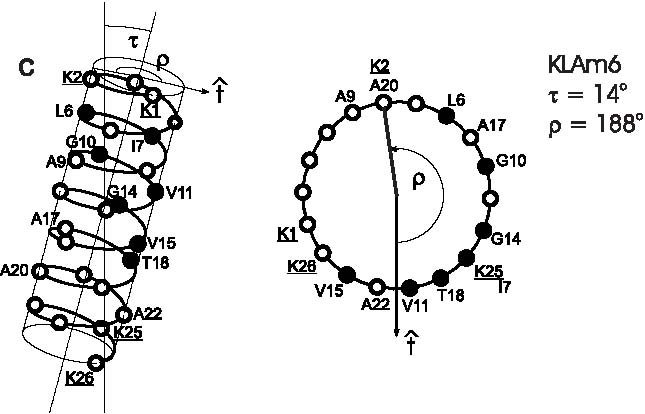

The motions of membrane proteins affect functions like transmembrane signaling. Polypeptides modeled on protein segments can be studied by attaching deuterium atoms and observing by NMR. We use specially designed polypeptides to study how specific structural features can promote peptide association and, in turn, how such associations affect bilayer properties. Segments of lung surfactant proteins are also observed in this way to determine how surfactant layer maintenance depends on interactions between proteins. We have recently found evidence that peptide dynamics may be sensitive to positioning of a dimerization motif, from glycophorin A, in the membrane-spanning region of a model peptide.

Perturbation of bacterial membranes by antimicrobial peptides

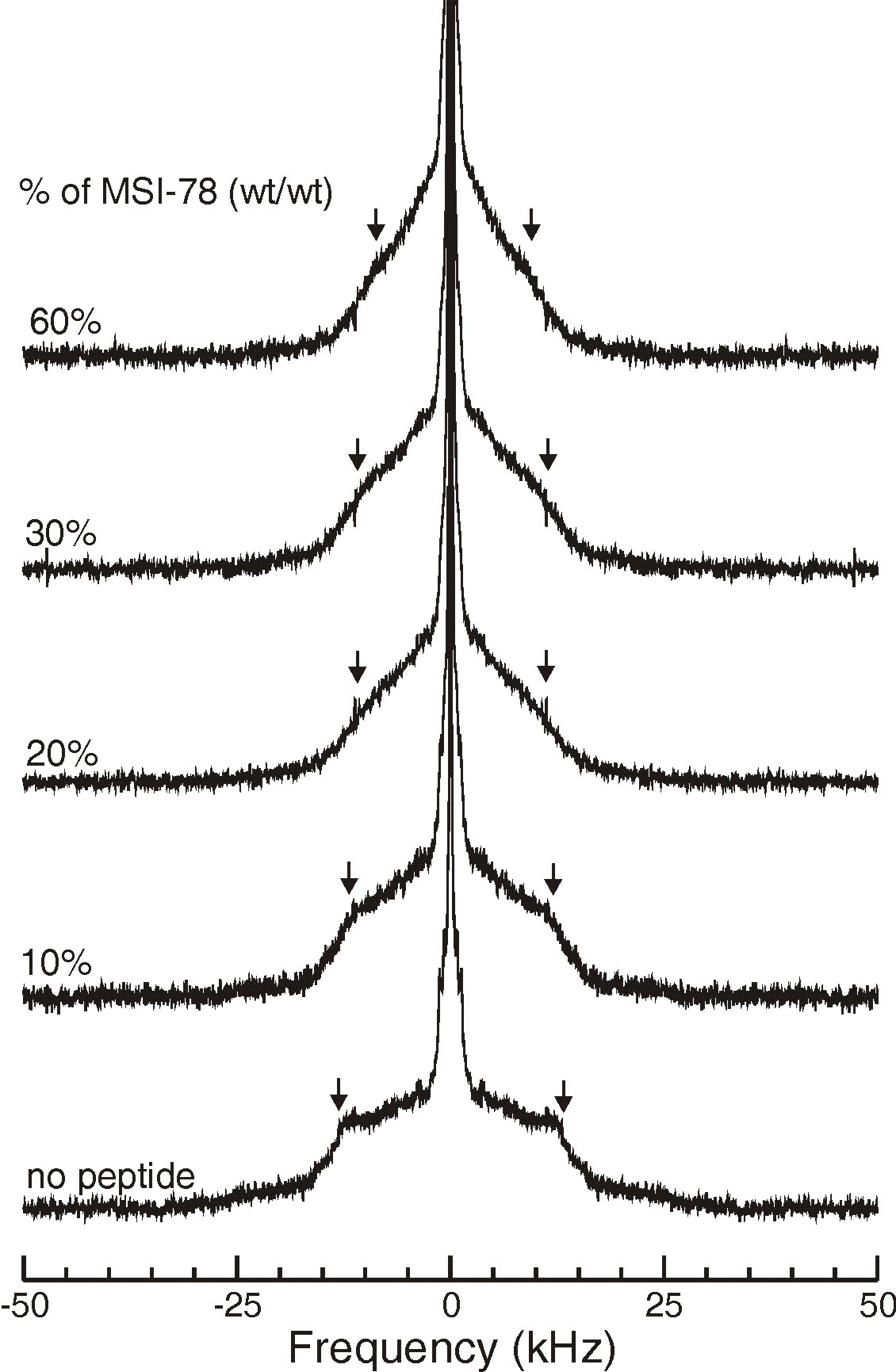

In collaboration with the group of Valerie Booth (Biochemistry), we are using deuterium NMR to study the effect of antimicrobial polypeptides on lipid acyl chain average orientational order in bacterial strains, developed by James Pius, that can incorporated deuterated phospholipid labels.

Facilities

In the past, our primary tools were two wideline NMR spectrometers built by M. Morrow and students. One based on a 3.5 T widebore superconducting magnet was used primarily for variable pressure studies of samples containing deuterium-labeled lipids. These spectrometers have been decommissioned. Students now have access to a 14.1 T Bruker Avance II NMR spectrometer.
